Functional Indexes in MySQL

Jan 12, 2023
3 minutes

MySQL Indexes

Database indexes are used to help query performance. Database indexes typically contain information about data in a specific column of the database table. With the introduction of functional indexes in MySQL 8.0.13, we can now create indexes based on the result of an expression or function.

The Setup

Before talking about functional indexes, let’s get some data set up. Download this file and run the SQL script it contains to get your table created and data inserted.

When you are done, you should have a table named test_data with the following structure:

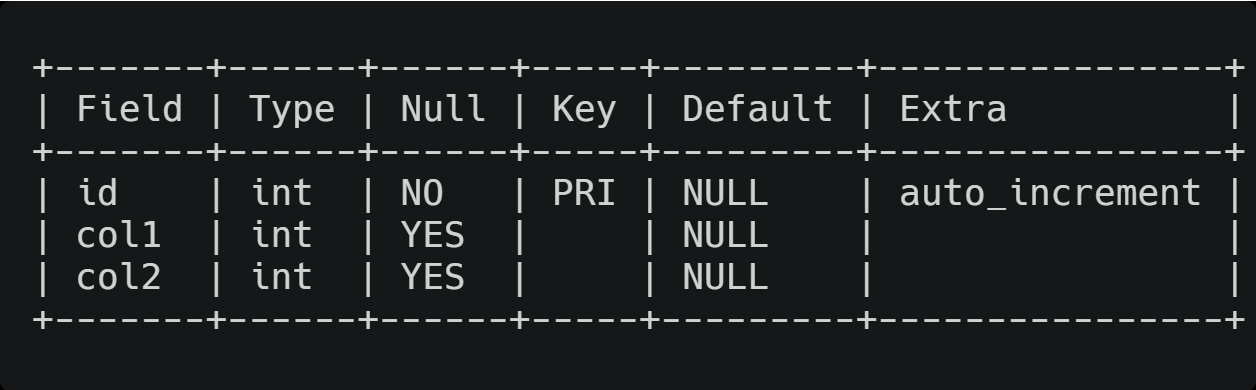

test_data table structure

This table should also contain 2000 rows of data.

The Problem

As you can see, our table structure is basic. It contains three columns: an id and two columns that contain integers. If we wanted to count how many rows exist where the sum of these two integers is 10, it would look something like this:

select count(*) from test_data where col1 + col2 = 10;

And the result would look like this:

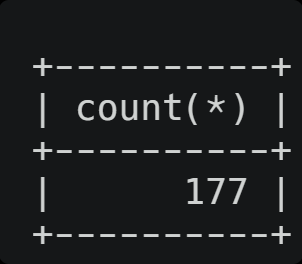

query results

We can take a look at the explain plan for this query by executing this SQL command:

explain select count(*) from test_data where col1 + col2 = 10\G

Note: We use \G at the end of the command to get more readable output in the command line interface.

The result of this command will look like the following:

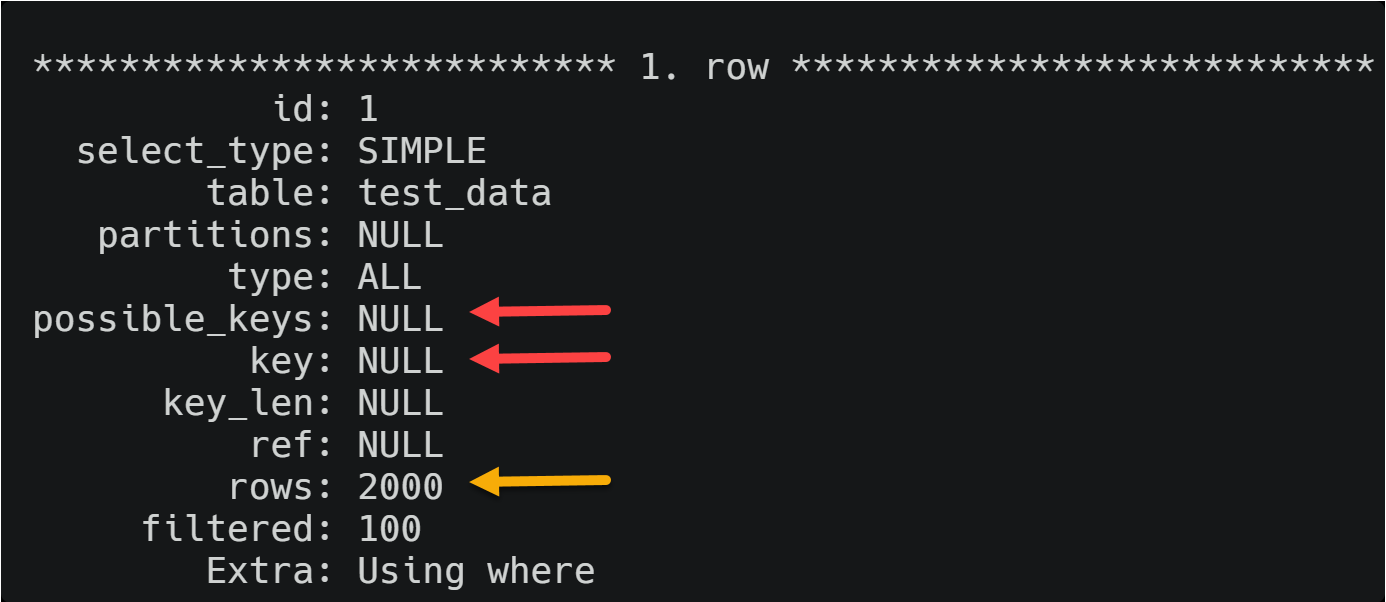

explain plan result

The red arrows indicate that there are no indexes that we can use in this query. The yellow arrow indicates that the query did a full table scan.

The performance of this query is acceptable in the given data set, but if this table had substantially more data doing a full table scan would hurt performance.

The Solution

You probably have already figured out that the solution to this problem is to create a functional index - and you would be correct!

The syntax for creating a functional index is similar to creating a standard index. The command to create an index for our demonstration would be the following:

alter table test_data
    add index col_sum((col1 + col2));

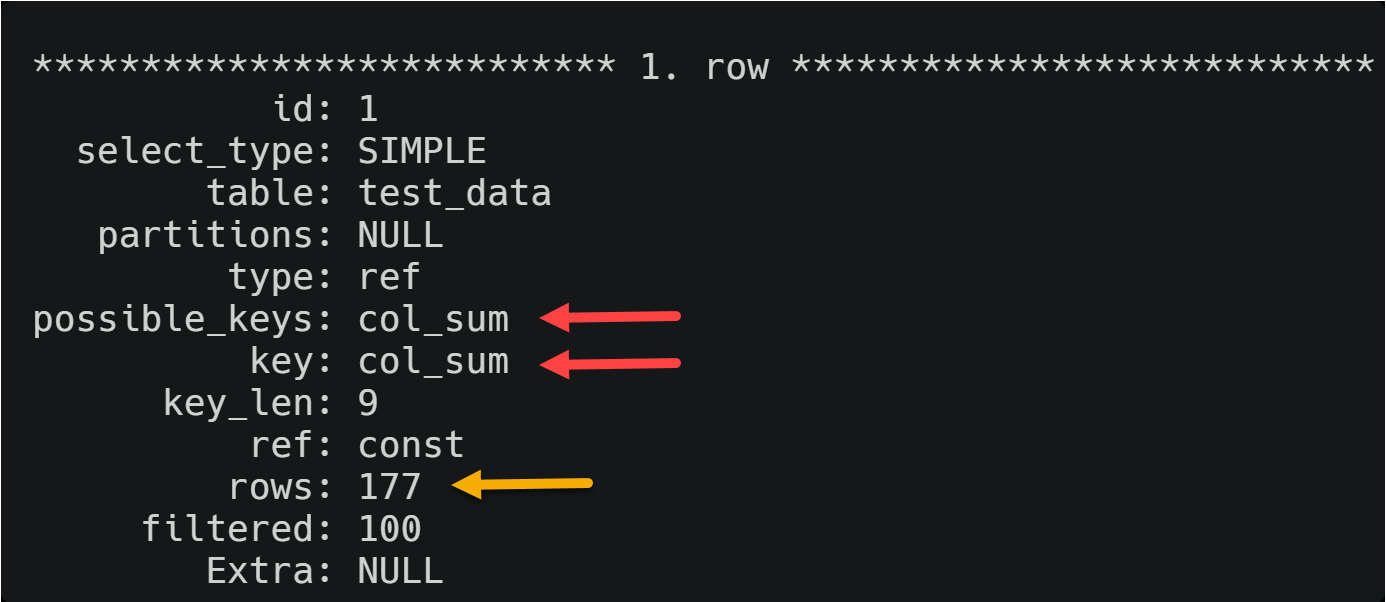

Now that we have an index that can help our query let’s look at the explain plan again:explain plan result 2Here, the red arrows show some indexes are used, and the yellow arrow indicates only 177 rows were scanned. Even in this small data set, that is quite an improvement.

The Rules

Functional indexes can increase query performance without having to rewrite the query to address any bottlenecks. However, there are some rules that we need to follow.

  • Expressions MUST be contained in parentheses to differentiate them from columns.
    • INDEX((col1 + col2)) vs INDEX( col1, col2)
    • We can create an index that has functional and non-functional definitions.
      • INDEX((col1 + col2), col1)
  • Functional index definitions cannot contain only column names.
    • INDEX ((col1), (col2)) will throw an error.
  • Functional index definitions are not allowed in foreign key columns.
  • The index will only be used when a query uses the same expression.
    • select count(*) from test_data where col1 - col2 = 0 will NOT use the index we created.
      • We would need to create a new index using the expression (col1-col2).

The Implications

Before we go out and create functional indexes to accommodate all our queries that use expressions in the WHERE clause, there are some things to keep in mind. When a functional index is added, a hidden virtual column is created. As a result, the following implications exist:

  • The generated column counts against the limit on the number of tables allowed.
  • Only functions allowed for generated columns may be used in an expression for a functional index.
  • The following are not allowed in functional indexes:
    • Subqueries
    • Parameters
    • Variables
    • Stored functions
    • Loadable functions

The Wrap-Up

As we have shown, functional indexes can help performance in queries that use expressions in the WHERE clause. However, we need to consider the ramifications of these indexes on our underlying database structure.
